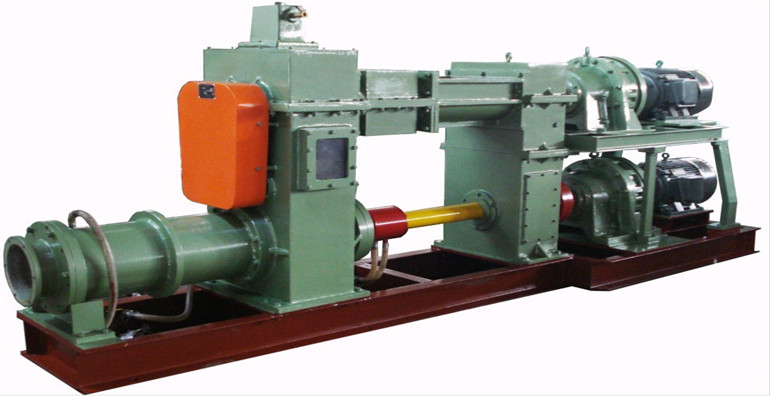

TCJ 250 pug mill

Category:
General Details

TCJ250 stainless steel de-airing pug mill is designed based on the condition of domestic cermic honeycomb production and absorb the technology features both home and abroad, the material is stainless steel, it is specoal used in production of ceramic honeycomb of car waste gas treamtnet, it also can used for other ceramic product to process clay. It can installed different extruding jet and month to get required hollow or solid adobe. It is necessary equipment in ceramic honeycomb production line.

TCJ250 de-airing pug mill main technical parameter:

  • Clay moisture: 16~21%
  • Capacity: 1.5~3T/h
  • Stirring shaft rotation speed: 23rpm (adjustable)
  • Extruding shaft rotation speed: 28.5rpm (adjustable)
  • Extruding shaft diameter: Φ250mm
  • Vacuum degree: -0.96Mpa
  • Material: stainless steel
  • Motor power: 22kw+30kw
  • Overall size (LxWxH):6000x1130x2100mm
  • Net weight: 7000kg
